Positive vs Negative Pressure Rooms: A Facility Manager's Guide

Introduction

A positive pressure room is maintained at higher air pressure than its surroundings so air flows outward when a door opens, keeping contaminants out; a negative pressure room is held lower than its surroundings so air flows inward, keeping contaminants contained. Facility managers must monitor the differential continuously in both cases, because the failure mode is invisible without instrumentation.

Choosing Positive or Negative Pressure for a Space

The choice is determined by what needs protecting. Cleanrooms, operating theatres, and protective isolation rooms for immunocompromised patients are kept positive relative to the corridor, so unfiltered corridor air cannot enter and compromise the controlled environment. Infectious isolation rooms, laboratories handling pathogens, and some pharmaceutical containment suites are kept negative, so contaminated air cannot escape into the corridor when the door opens.

Ace Instruments supplies the AI-DDPG/DP1-1 differential pressure indicator for exactly this monitoring role, and the IAQ Detectors instrument is calibrated for the low, precise pressure ranges both positive and negative pressure applications require.

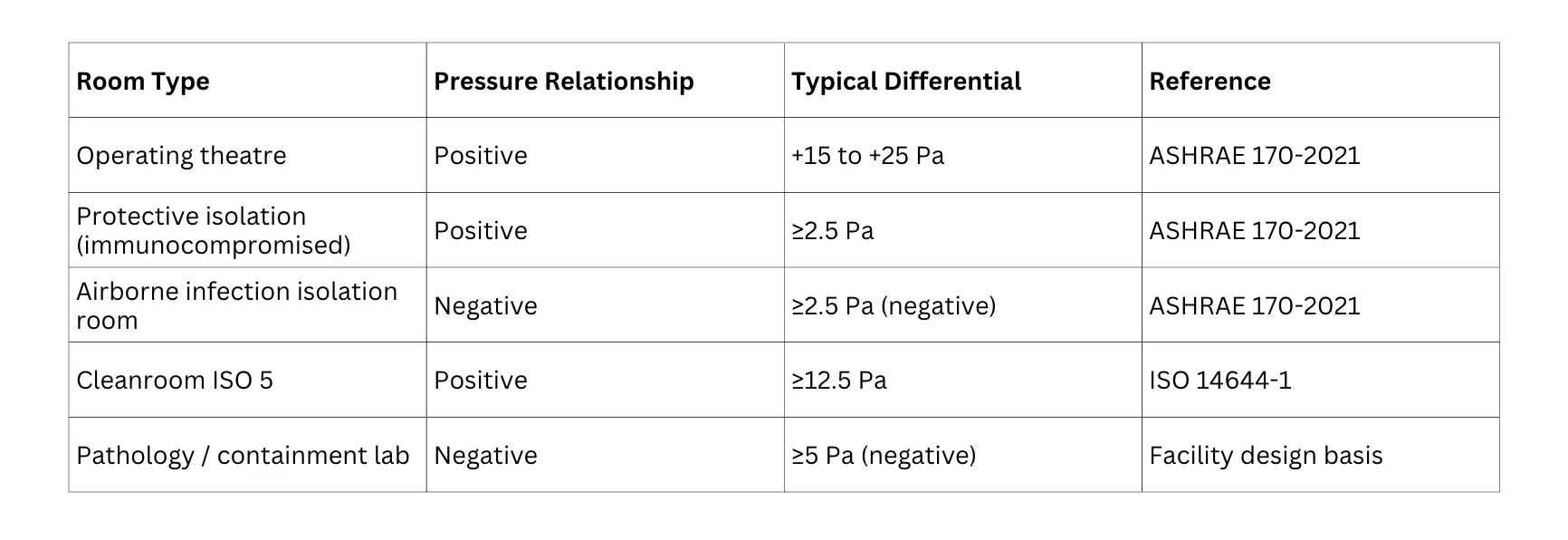

Positive vs Negative Pressure Room Applications

How Room Pressure Is Continuously Verified

In both positive and negative pressure rooms, a differential pressure indicator such as the AI-DDPG/DP1-1 references one port to the monitored room and the other to the corridor or anteroom, producing a signed output positive when the monitored room is higher, negative when it is lower. A local display at the door gives staff an immediate visual check before entry, which matters most in infection control settings where a failed negative pressure room can put staff and adjacent patients at risk within minutes.

For continuous compliance logging, the same reading feeds a building management system via 4-20mA or RS-485 Modbus RTU, with alarm thresholds set to flag any excursion beyond the room's design differential.

Field Note

A multi-specialty hospital's infection control team requested continuous logging after a manual pressure-check regime failed to catch a negative pressure isolation room drifting to neutral over a weekend when an adjacent door was propped open for equipment delivery. AI-DDPG/DP1-1 units with BMS-linked alarms were installed across all isolation rooms, and the alarm-triggered response protocol has since caught two similar excursions within minutes rather than days.

Frequently Asked Questions

What is the difference between a positive and negative pressure room?

A positive pressure room is held at higher air pressure than its surroundings so air flows outward, keeping contaminants out, while a negative pressure room is held at lower pressure so air flows inward, keeping contaminants contained.

What pressure differential is required for an airborne infection isolation room?

ASHRAE 170-2021 recommends a minimum negative pressure differential of 2.5 Pa relative to the corridor for airborne infection isolation rooms, verified continuously.

Why do positive pressure rooms need continuous monitoring rather than periodic checks?

A pressure failure has no visible warning sign air movement direction cannot be judged reliably by occupants, so continuous instrumented monitoring with alarms is the only reliable way to detect a loss of containment or protection promptly.

Why Trust IAQ Detectors

Ace Instruments AI-DDPG/DP1-1 differential pressure indicator is CE certified and manufactured under ISO 9001:2015; IAQ Detectors instrumentation is deployed in more than 1,000 commercial and healthcare installations worldwide.
