Cleanroom Pressure Cascade: ISO 14644-1 Explained

Introduction

A cleanroom pressure cascade is a sequence of progressively lower air pressure zones, engineered so that air always flows from the cleanest space to the least clean space. ISO 14644-1 classifies cleanrooms by particle count and expects the pressure cascade to be maintained and continuously verified to prevent cross-contamination.

Why Pressure Cascade Design Matters

In a correctly designed cascade, an ISO 5 cleanroom sits at the highest pressure, feeding air outward through ISO 6, ISO 7, and ISO 8 zones toward the corridor and finally the outdoors. Any breach in this staged pressure difference, a door left open, a damaged seal, a failed air handling unit  allows unfiltered or lower-grade air to migrate upstream, compromising the classification the room was built to maintain.

Ace Instruments supplies the AI-DDPG/DP1-1 cleanroom differential pressure indicator specifically for this monitoring task. The IAQ Detectors instrument is installed at doorways and partition walls between adjacent cleanroom grades, giving operators a continuous, visible reading of the cascade status.

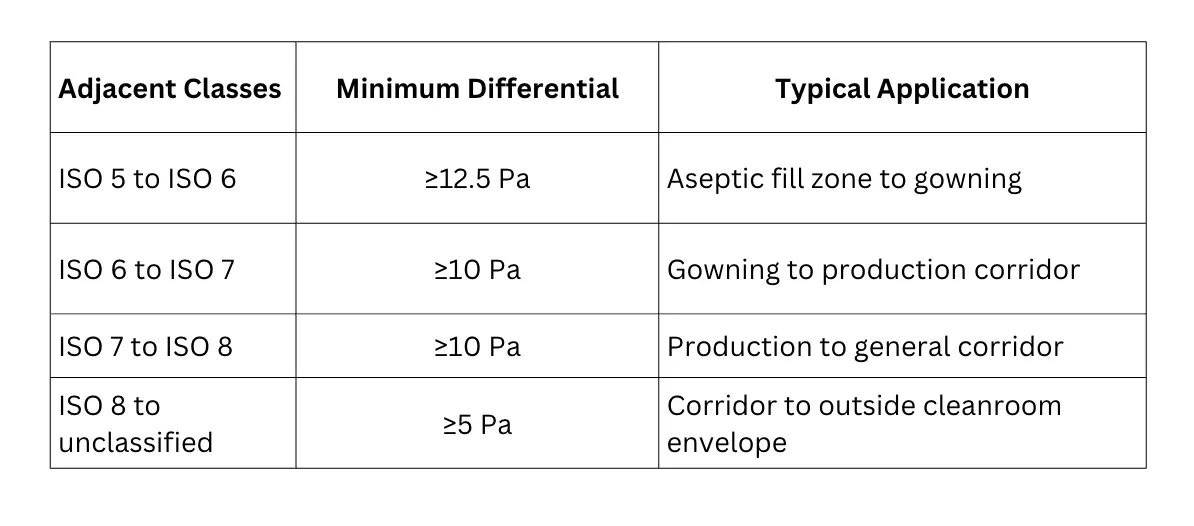

ISO 14644-1 Class-to-Class Pressure Differential Guidance

How Cleanroom Pressure Indicators Work

The AI-DDPG/DP1-1 measures the pressure difference across a wall or doorway using two ports piped to each adjacent zone, in the same principle as an HVAC differential pressure transmitter but calibrated for the lower, tighter ranges cleanroom applications demand typically 0 to 50 Pa full scale with sub-Pascal resolution. A local analogue or digital display lets operators verify the cascade at a glance without checking a BMS screen, which is important during gowning and material transfer routines where staff need an immediate visual confirmation.

For regulatory and audit purposes, the same reading can be logged continuously through a 4-20mA or RS-485 Modbus RTU output to a building management system or environmental monitoring system, creating the trend history that EU GMP Annex 1 (2022) and NABH assessments expect to see.

Field Note

A pharmaceutical client's aseptic fill suite in southern India runs AI-DDPG/DP1-1 units at every gowning and material airlock. During a recent internal audit, the trend log showed a two-day period where the ISO 7 to ISO 8 differential dipped below the 10 Pa threshold during a planned AHU filter change the log gave the quality team the documented evidence needed to demonstrate the deviation was identified, timed, and closed out, rather than undetected.

Frequently Asked Questions

What is a cleanroom pressure cascade?

A cleanroom pressure cascade is a designed sequence of decreasing air pressure zones that ensures air always flows from cleaner to less clean spaces, preventing contamination from migrating into higher-classified areas.

What pressure differential does ISO 14644-1 recommend between cleanroom classes?

ISO 14644-1 does not prescribe a single fixed number for every project, but industry guidance commonly applies a minimum of 10–12.5 Pa between adjacent cleanroom classes, verified against the facility's own qualification protocol.

Where should a cleanroom differential pressure indicator be installed?

Cleanroom differential pressure indicators are installed at doorways, airlocks, and partition walls between zones of different cleanliness classification, so operators can confirm the cascade at the exact points where a breach would occur.

Can cleanroom pressure data be logged for GMP audits?

Yes, the AI-DDPG/DP1-1 outputs a continuous signal via 4-20mA or RS-485 Modbus RTU that can be trended in a building management system or environmental monitoring system to create the audit trail expected under EU GMP Annex 1 (2022).

Why Trust IAQ Detectors

The AI-DDPG/DP1-1 cleanroom differential pressure indicator from Ace Instruments is CE certified and manufactured under ISO 9001:2015, and IAQ Detectors instrumentation is currently deployed across more than 1,000 commercial and industrial installations, including pharmaceutical and life-sciences cleanrooms.
