What Is Differential Pressure Monitoring in HVAC Systems?

Introduction

Differential pressure monitoring measures the pressure difference between two points in an HVAC system across a filter, a duct, or between two rooms. Facility teams use this reading to verify filter loading, confirm correct room pressurisation, and catch airflow faults before they affect occupants or equipment.

Why Differential Pressure Matters in Building HVAC

A rising pressure drop across a filter bank tells a maintenance team the filter is loading with particulate and airflow is dropping. A falling pressure difference between an isolation room and its corridor tells a facilities director that containment has failed. In both cases, the underlying measurement is the same: differential pressure, expressed in pascals (Pa) or inches of water column (in. w.c.).

Ace Instruments builds the AI-DPTx differential pressure transmitter specifically for these continuous monitoring duties across AHU, VAV, and room-pressurisation applications. As part of the IAQ Detectors range, the instrument outputs a live 4-20mA, 0-10V, or RS-485 Modbus RTU signal to a building management system (BMS), so pressure drift is flagged before it becomes a comfort or compliance issue.

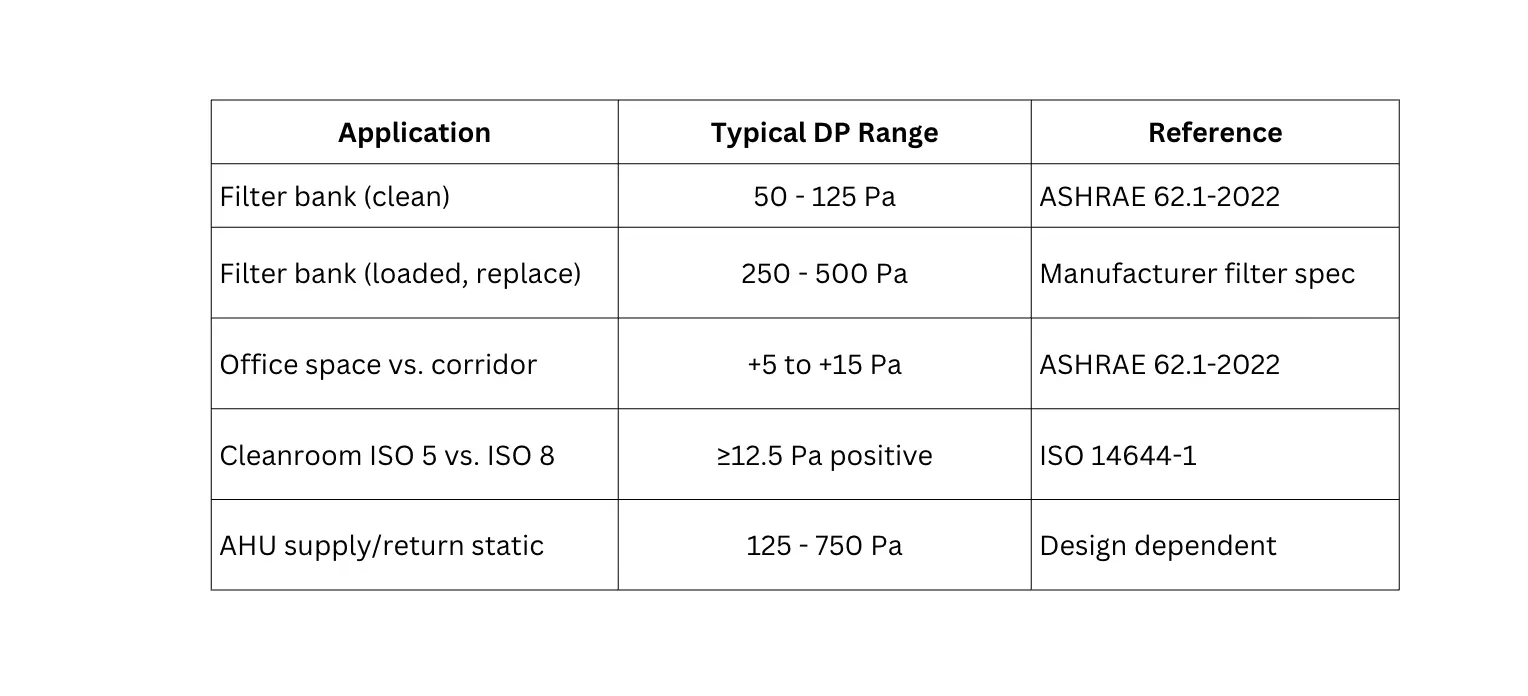

Typical Differential Pressure Ranges in Commercial HVAC

How a Differential Pressure Transmitter Works

The AI-DPTx uses a piezoresistive diaphragm sensing element connected to two pressure ports. Air pressure on each side of the diaphragm deflects it proportionally to the pressure difference; the deflection is converted into a linear electrical output. Because the measurement is relative (high port minus low port) rather than absolute, the transmitter reads accurately regardless of small fluctuations in barometric pressure caused by weather or building stack effect.

For duct and AHU applications, the two ports connect via tubing to static pressure tips positioned upstream and downstream of the component being monitored typically a filter bank, coil, or damper. For room pressurisation, one port samples the monitored space and the other samples the reference space (corridor, anteroom, or outdoors).

Field Note

On a recent commercial office retrofit in Hyderabad, the facilities contractor used AI-DPTx units across three AHU filter banks feeding open-plan floors. Within the first month, one unit flagged a differential pressure climbing from 90 Pa to 240 Pa over ten days, the filter media had folded during a rushed installation, restricting airflow well before the scheduled replacement interval. Catching it early avoided an unplanned VAV starvation event on the floor above.

Frequently Asked Questions

What is differential pressure in an HVAC system?

Differential pressure is the difference in air pressure between two points in an HVAC system, such as across a filter or between two adjoining rooms, expressed in pascals (Pa) or inches of water column.

Why is differential pressure important for filter maintenance?

Differential pressure rises predictably as a filter loads with particulate, giving maintenance teams a measurable trigger for replacement instead of relying on a fixed calendar schedule.

What output signal does the AI-DPTx differential pressure transmitter provide?

The AI-DPTx supports 4-20mA, 0-10V, and RS-485 Modbus RTU output, allowing integration with most building management system platforms without a protocol converter.

Is differential pressure monitoring required by ASHRAE 62.1?

ASHRAE 62.1-2022 does not mandate continuous differential pressure monitoring for standard offices, but it is standard practice for verifying ventilation system performance and is required in certain healthcare and cleanroom applications under ASHRAE 170-2021 and ISO 14644-1.

Why Trust IAQ Detectors

Ace Instruments has manufactured pressure instrumentation at its Hyderabad facility since 1991, and the IAQ Detectors AI-DPTx differential pressure transmitter is CE certified and produced under an ISO 9001:2015 quality system, with more than 1,000 installations worldwide across commercial and industrial buildings.
