Hydrogen Gas Detection for Data Centre Battery Rooms and UPS

Introduction

Valve-regulated lead-acid (VRLA) batteries in a UPS system release hydrogen gas as a normal by-product of charging, and in a poorly ventilated battery room that hydrogen can accumulate toward its lower explosive limit (LEL) without any visible or odour warning, making continuous gas detection a core safety requirement rather than an optional add-on.

Why Battery Rooms Are an Overlooked Risk in Data Centre Design

Data centre monitoring conversations tend to focus on temperature, humidity, and pressure, and battery rooms often get treated as a facilities-management afterthought rather than a hazardous-area monitoring point. Yet hydrogen is colourless and odourless, and a boost-charging cycle or a battery fault can increase off-gassing rates well above normal float-charge levels, so a room ventilated adequately under typical conditions can still accumulate hydrogen during an abnormal charging event.

Ace Instruments AI-LEL-FLP hydrogen detector is built specifically for this application, with a 0 to 100% LEL measurement range, staged alarms at 10% and 25% LEL, and a flameproof housing certified by CIMFR Dhanbad  a combination the IAQ Detectors team treats as one of the clearest coverage gaps in data centre battery room monitoring.

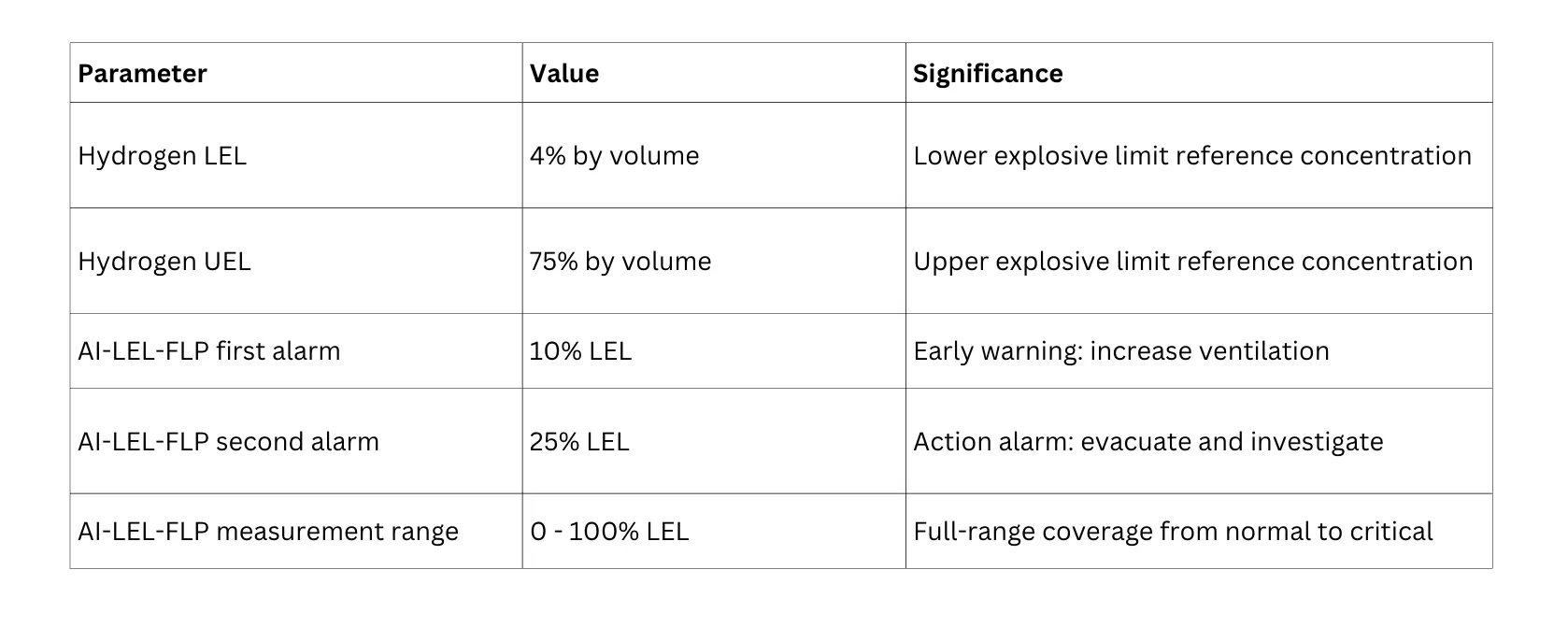

Hydrogen LEL Reference for Battery Room Monitoring

How Staged Alarms and Flameproof Housing Work Together

The AI-LEL-FLP uses a catalytic sensing element to detect hydrogen concentration across its full 0 to 100% LEL range, with two independent alarm setpoints rather than a single threshold. The first alarm at 10% LEL gives a facilities team an early signal to increase ventilation or investigate a charging fault well before conditions become hazardous; the second alarm at 25% LEL is set as a clear action threshold for evacuation and immediate investigation.

Because the detector itself operates in a space where flammable gas may be present, its housing is certified flameproof by CIMFR Dhanbad (Central Institute of Mining and Fuel Research), meaning the enclosure is designed to contain any internal ignition and prevent it propagating into the surrounding battery room atmosphere a certification requirement specific to instruments deployed in potentially explosive atmospheres.

Field Note

A UPS battery room fitted with an AI-LEL-FLP recorded a 10% LEL first-alarm event during a scheduled boost-charging cycle that ran longer than planned due to a charger configuration error. The early alarm prompted the facilities team to increase battery room ventilation and correct the charger setting before hydrogen concentration approached the 25% LEL action threshold, avoiding an evacuation event entirely.

Frequently Asked Questions

Why do UPS battery rooms need hydrogen gas detection?

VRLA batteries release hydrogen gas during normal and boost charging, and because hydrogen is colourless and odourless, a poorly ventilated battery room can accumulate it toward its explosive limit without any noticeable warning, making continuous detection a core safety measure.

What are the AI-LEL-FLP's alarm setpoints?

The AI-LEL-FLP provides staged alarms at 10% LEL for early warning and 25% LEL as an action threshold for evacuation and investigation, across a full 0 to 100% LEL measurement range.

What does a CIMFR-certified flameproof housing mean?

A flameproof housing certified by CIMFR Dhanbad is designed and tested to contain any internal ignition within the enclosure, preventing it from igniting the surrounding atmosphere in a space where flammable gas may be present.

What is the lower explosive limit (LEL) of hydrogen?

Hydrogen has a lower explosive limit of approximately 4% by volume in air, with an upper explosive limit of approximately 75% by volume.

Why Trust IAQ Detectors

The AI-LEL-FLP hydrogen detector is manufactured by Ace Instruments under CE certification and ISO 9001:2015, with a flameproof housing certified by CIMFR Dhanbad; IAQ Detectors instrumentation supports battery room and UPS safety monitoring across more than 1,000 commercial and industrial installations worldwide.
